Outdoor Wireless Bridging for Business
For some businesses, reliable connectivity doesn’t stop at the office doorway; it extends into the great outdoors.
Whether that means connecting two warehouses across a yard, linking a guardhouse at the perimeter, or bringing IP (Internet Protocol) cameras online in areas where running cable would be slow, costly, or physically disruptive, extending network access beyond a single building is a real challenge.
This is where outdoor wireless bridging comes into play.

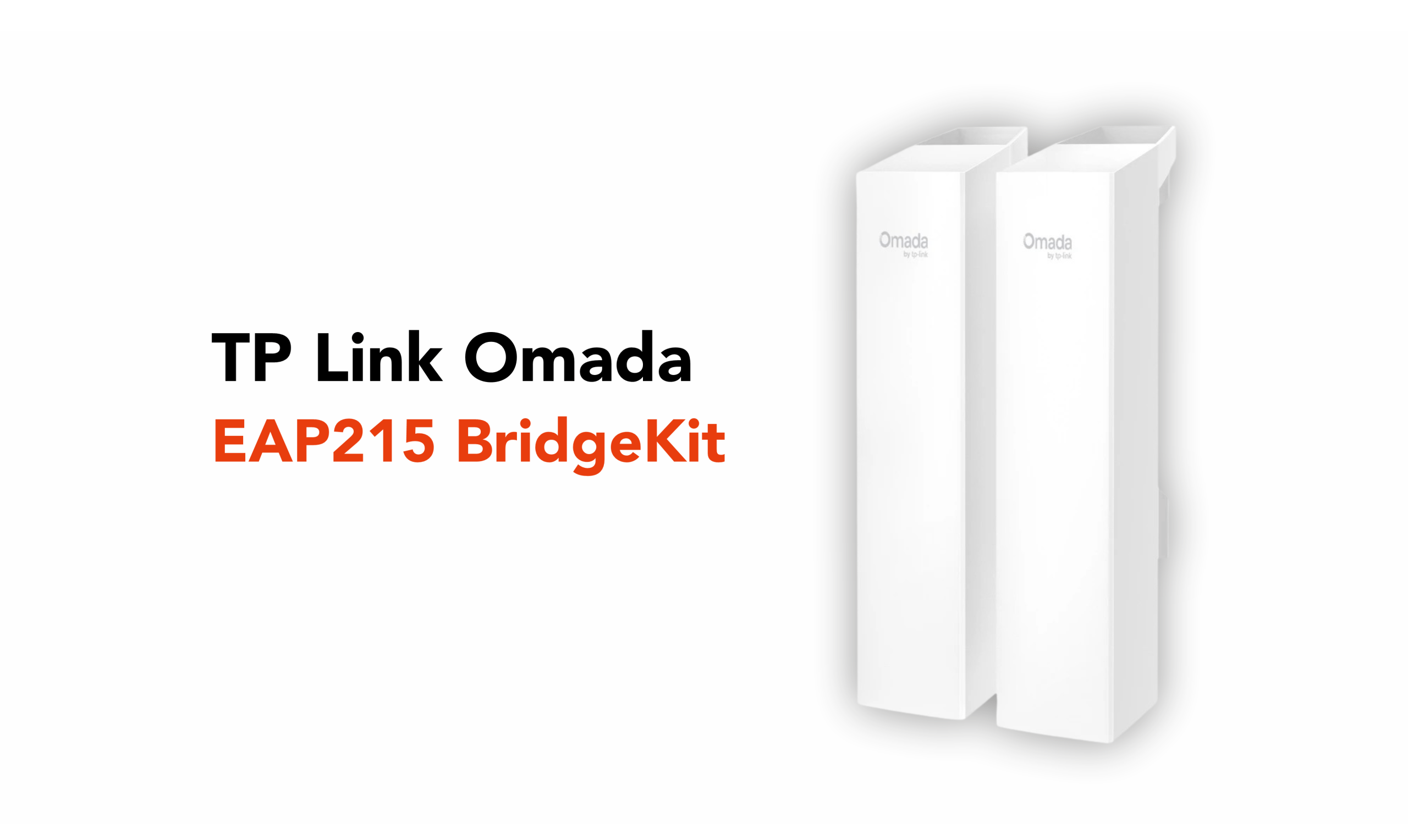

The TP-Link Omada EAP215-Bridge Kit is built for long-range outdoor wireless links, enabling businesses to connect remote locations without digging trenches or installing underground cabling.
For companies planning site expansion, CCTV rollouts, or multi-building connectivity, it is a practical piece of networking equipment with a very specific role: moving data across outdoor spaces where standard indoor Wi-Fi simply is not enough.
Before looking at setup and business use cases, it helps to understand what a wireless bridge actually does.
What Is the TP-Link Omada EAP215-Bridge Kit?
The TP-Link Omada EAP215-Bridge Kit is not a typical Wi-Fi access point designed to provide indoor coverage for phones and laptops.
Instead, it is purpose-built for outdoor wireless bridging, allowing businesses to connect two or more physical locations over distance.
At its core, the kit is designed for:
Point-to-Point (PtP): One Link, One Destination
A Point-to-Point link is the simplest form of wireless bridging.
It connects one location directly to another, creating a dedicated link between two fixed points. Think of it as a private digital cable, just without the trenching.
In a business setting, this might include:
- An office connected to a warehouse across a yard
- The main building is linked to a guardhouse at the entrance
- And a shop connected to a back-office or storage unit
The connection is direct, stable, and focused on a single destination
Because the link is dedicated, PtP setups tend to offer more consistent performance and easier optimisation.
Point-to-Multipoint (PtMP): One Source, Multiple Locations
A Point-to-Multipoint link expands on that idea.
Instead of connecting to just one remote location, a single central unit connects to multiple endpoints.
One device acts as the “hub”, distributing connectivity outward like spokes on a wheel.
Typical use cases include:
- Inside a central office linking to multiple outbuildings
- On a farm or estate connecting several remote structures
- For a security system linking multiple camera clusters across a large site
- And hospitality venues with separate buildings or outdoor areas
This setup allows businesses to scale connectivity across a wider area without installing multiple individual links.
With support for both PtP and PtMP, the EAP215 offers flexibility as networks grow. The same hardware can support a simple two-building link today and expand into a multi-location setup over time.
It’s also important to note that the EAP215 is not designed as a general indoor Wi-Fi solution. Its role is to create structured, long-range connections between fixed locations.
What Is a Wireless Bridge?
A wireless bridge solves a specific problem: how to connect two networks without running a physical cable between them.
Instead of installing Ethernet or fibre, the bridge creates a wireless connection that behaves much like a physical link between buildings.
This makes wireless bridging ideal for:
- Linking separate buildings on the same property
- Connecting offices to warehouses or workshops
- Extending connectivity to guardhouses, gates, or perimeter security points
- Enabling CCTV systems in remote areas
- Providing connectivity to temporary or mobile site offices
- And covering large outdoor areas such as yards, estates, farms, or campuses
Now that we understand what the EAP215 is, let’s discuss its key features.
Key Features of the TP-Link Omada EAP215-Bridge Kit
The TP-Link Omada EAP215-Bridge Kit is designed to deliver reliable long-range wireless connectivity in outdoor business environments.
Its feature set focuses on performance, durability, and ease of deployment. These key features include:
AC1200 Dual-Band Wireless Speeds (867 Mbps on 5 GHz)
The EAP215 operates on the 5 gigahertz (GHz) frequency band, supporting wireless speeds of up to 867 megabits per second (Mbps).
This means it can handle higher throughput for data-heavy applications such as CCTV streams. It also means there is less interference than in congested 2.4 GHz networks.
It also contributes to more stable connections across outdoor environments, where interference and distance can impact performance.
While real-world speeds depend on distance and conditions, the system is built to support demanding business use cases.
Long-Range Connectivity of Up to 5 km
The EAP215-Bridge Kit is designed for transmission distances of up to 5 kilometres (km) under optimal conditions.
This allows businesses to extend connectivity across large outdoor spaces without installing physical cabling.
However, achieving this range depends on clear Line of Sight (LoS) and a clear Fresnel Zone, correct alignment, and minimal interference.
3 × Gigabit Ethernet Ports for Flexible Deployment
The Main Bridge unit includes three Gigabit Ethernet ports (1 × PoE In, 2 × PoE Out), while the Sub-unit provides connectivity for remote devices.
This simplifies installations and supports devices such as IP cameras, switches, or additional access points.
Auto-Pairing for Faster Setup
The EAP215-Bridge Kit includes pre-paired units, allowing the devices to connect automatically out of the box. The kit features ‘Auto-Pairing’ and ‘Agile Config’, though for Point-to-Multipoint setups, manual configuration via the Omada Controller is recommended for optimal performance.
This means installation can be completed more quickly, without the need for complex manual configuration.
It also reduces the risk of setup errors, making the system more accessible for a wider range of business environments.
For organisations deploying multiple units across different locations, this helps streamline rollout and reduces time on site.
Signal Indicators for Easier Alignment
The devices feature built-in signal strength indicators, which assist with physical alignment during installation.
This means installers can position the units more accurately to achieve the strongest possible connection.
It also reduces guesswork during setup, which is especially important for long-distance links where small adjustments can have a significant impact on performance.
Better alignment ultimately leads to more stable and reliable connectivity.
Built for Outdoor Conditions (IP65 + Lightning Protection)
The EAP215 is designed for outdoor use, with an IP65-rated weatherproof enclosure, meaning it is fully protected against dust and resistant to water jets such as rain or hose spray.
It also helps safeguard the system against electrical surges, which can be a risk in outdoor installations.
As a result, the bridge can be installed on external structures such as walls or poles with confidence in its durability.
Omada SDN Centralised Management
The EAP215 integrates with the Omada Software Defined Networking (SDN) platform, enabling centralised network management.
This means administrators can monitor and configure devices remotely from a single interface.
It also provides better visibility across multiple sites, making it easier to manage larger or more distributed networks.
For growing businesses, this provides a scalable way to maintain control as network infrastructure expands.
Features such as IP65 weatherproofing, long-range transmission, and centralised management make the EAP215 a strong technical solution.
However, real-world performance depends on correct installation, alignment, and network design.
This is where circle.cloud helps businesses turn these features into reliable, working connectivity.
How circle.cloud Can Help
Deploying a wireless bridge is not just about the hardware. Performance comes down to planning, positioning, and integration.
That’s where circle.cloud comes in:
- Get help designing a Point-to-Point or Point-to-Multipoint network
- Request professional installation and alignment support
- Integrate wireless bridging into your existing network and CCTV systems
- Set up centralised network management with Omada SDN
